Softmax: Math, Implementation, and GPU Optimization

Background

The softmax function is a fundamental operation in deep learning that converts vectors of real numbers into probability distributions. This blog post explores the softmax function’s implementation and optimization using Triton, a programming framework for efficient GPU computations.

The softmax function transforms an input vector into a probability distribution where all elements sum to 1.

softmax - vector form

𝒐_{𝑖} = softmax (𝒙_{𝑖}) = \frac{𝑒^{𝒙_{𝑖}}}{\sum_{𝑗 = 1}^{𝑑} 𝑒^{𝒙_{𝑗}}}

where:

$𝒙 \in ℝ^{𝑑}$ : input vector.
$𝒐 \in ℝ^{𝑑}$ : output vector, probability distribution.

Gradient of softmax (vector form)

We will compute gradients $\frac{𝜕 𝐿}{𝜕 𝒙}$ given $\frac{𝜕 𝐿}{𝜕 𝒐}$ , where $𝐿$ is loss function, $𝒐$ is softmax output.

Jacobian matrix

softmax is a vector function, the Jacobian matrix is the matrix of all partial derivatives:

\frac{𝜕 𝒐}{𝜕 𝒙} = 𝑱 = (\begin{matrix} \frac{𝜕 𝒐_{1}}{𝜕 𝒙_{1}} & \frac{𝜕 𝒐_{1}}{𝜕 𝒙_{2}} & \dots & \frac{𝜕 𝒐_{1}}{𝜕 𝒙_{𝑑}} \\ \frac{𝜕 𝒐_{2}}{𝜕 𝒙_{1}} & \frac{𝜕 𝒐_{2}}{𝜕 𝒙_{2}} & \dots & \frac{𝜕 𝒐_{2}}{𝜕 𝒙_{𝑑}} \\ ⋮ & ⋮ & ⋱ & ⋮ \\ \frac{𝜕 𝒐_{𝑑}}{𝜕 𝒙_{1}} & \frac{𝜕 𝒐_{𝑑}}{𝜕 𝒙_{2}} & \dots & \frac{𝜕 𝒐_{𝑑}}{𝜕 𝒙_{𝑑}} \end{matrix})

For softmax, the derivative has two cases:

when $𝑖 = 𝑗$ , consider $𝒐_{𝑖} = \frac{𝑒^{𝒙_{𝑖}}}{\sum_{𝑗 = 1}^{𝑑} 𝑒^{𝒙_{𝑗}}}$ , the derivative is:
$\frac{𝜕 𝒐_{𝑖}}{𝜕 𝒙_{𝑖}} = 𝒐_{𝑖} (1 - 𝒐_{𝑖})$
similarly, when $𝑖! = 𝑗$ :
$\frac{𝜕 𝒐_{𝑖}}{𝜕 𝒙_{𝑗}} = - 𝒐_{𝑖} 𝒐_{𝑗}$

Thus, $(𝑖, 𝑗)$ -th element in Jacobian matrix will be:

𝑱_{𝑖 𝑗} = 𝒐_{𝑖} (𝛿_{𝑖 𝑗} - 𝒐_{𝑗})

where $𝑱$ has shape $[𝑑 \times 𝑑]$ and $𝛿_{𝑖 𝑗}$ is the Kronecker delta, which is 1 if $𝑖 = 𝑗$ and 0 otherwise.

In matrix form, the Jacobian of the softmax is:

𝑱 = diag (𝒐) - 𝒐 𝒐^{𝑇}

where:

$𝒐$ is the output of softmax, the shape is $[𝑑]$ .
$diag (𝒐)$ is a diagonal matrix of $𝒐$ , the shape is $[𝑑 \times 𝑑]$ .
$𝒐 𝒐^{𝑇}$ is the outer product of $𝒐$ with itself, the shape is $[𝑑 \times 𝑑]$ .

gradient of $\frac{𝜕 𝐿}{𝜕 𝒙}$

Given $\frac{𝜕 𝐿}{𝜕 𝒐}$ , we can compute $\frac{𝜕 𝐿}{𝜕 𝒙}$ using the Jacobian matrix:

\frac{𝜕 𝐿}{𝜕 𝒙} = \frac{𝜕 𝒐}{𝜕 𝒙} \cdot \frac{𝜕 𝐿}{𝜕 𝒐} = 𝑱^{𝑇} \cdot \frac{𝜕 𝐿}{𝜕 𝒐}

where $\frac{𝜕 𝐿}{𝜕 𝒐}$ has shape $[𝑑]$ , $𝑱^{𝑇}$ has shape $[𝑑 \times 𝑑]$ , and $\frac{𝜕 𝐿}{𝜕 𝒙}$ has shape $[𝑑]$ .

avoid explicit Jacobian

For the $𝑖$ -th element of $\frac{𝜕 𝐿}{𝜕 𝒙}$ , we can decompose the computation to:

\frac{𝜕 𝐿}{𝜕 𝒙_{𝑖}} = 𝒐_{𝑖} (\frac{𝜕 𝐿}{𝜕 𝒐_{𝑖}} - \sum_{𝑗 = 1}^{𝑑} 𝒐_{𝑗} \frac{𝜕 𝐿}{𝜕 𝒐_{𝑗}})

This leads to an efficient vector form:

𝑠_{grad} = {(𝒐 * \frac{𝜕 𝐿}{𝜕 𝒐})}_{sum}

\frac{𝜕 𝐿}{𝜕 𝒙} = 𝒐 * (\frac{𝜕 𝐿}{𝜕 𝒐} - 𝑠_{grad})

softmax - batch form

$𝑿$ : A batch of input vectors.

𝑿 \in ℝ^{𝑁 \times 𝑑}

where:

$𝑁$ is batch size.
$𝑑$ is vector dimension.

forward pass

𝑬 = 𝑒^{𝑿}

𝒔 = \sum_{𝑗 = 1}^{𝑑} 𝑒^{𝑿_{𝑖 𝑗}}

𝑶 = \frac{𝑬}{𝒔}

where $𝑬 \in ℝ^{𝑁 \times 𝑑}$ , $𝒔 \in ℝ^{𝑁 \times 1}$ , $𝑶 \in ℝ^{𝑁 \times 𝑑}$ .

backward pass

We have gradient with respect to softmax output:

\frac{𝜕 𝐿}{𝜕 𝑶} \in ℝ^{𝑁 \times 𝑑}

we compute the gradient:

𝒔_{grad} = {(𝑶 * \frac{𝜕 𝐿}{𝜕 𝑶})}_{row_sum} \in ℝ^{𝑁 \times 1}

where $𝑶$ has size $[𝑁 \times 𝑑]$ , and $\frac{𝜕 𝐿}{𝜕 𝑶}$ has size $[𝑁 \times 𝑑]$ .

\frac{𝜕 𝐿}{𝜕 𝑿} = 𝑶 * (\frac{𝜕 𝐿}{𝜕 𝑶} - 𝒔_{grad})

where $\frac{𝜕 𝐿}{𝜕 𝑿} \in ℝ^{𝑁 \times 𝑑}$ and $𝑶 \in ℝ^{𝑁 \times 𝑑}$ and $𝒔_{grad} \in ℝ^{𝑁 \times 1}$ will be broadcasted to $ℝ^{𝑁 \times 𝑑}$ .

Implementation

In practice, we subtract the maximum value from each row before applying exp() to prevent numerical overflow:

real forward pass

For input $𝑿 \in ℝ^{𝑁 \times 𝑑}$ :

𝑿_{max} = max (𝑿) \in ℝ^{𝑁 \times 1}

𝑬 = 𝑒^{𝑿 - 𝑿_{max}}

𝒔 = \sum_{𝑗 = 1}^{𝑑} 𝑒^{𝑿_{𝑖 𝑗} - 𝑿_{max}}

𝑶 = \frac{𝑬}{𝒔}

real backward pass

we have $\frac{𝜕 𝐿}{𝜕 𝑶} \in ℝ^{𝑁 \times 𝑑}$ and cached $𝑶 \in ℝ^{𝑁 \times 𝑑}$

𝒔_{grad} = {(𝑶 * \frac{𝜕 𝐿}{𝜕 𝑶})}_{row_sum}

\frac{𝜕 𝐿}{𝜕 𝑿} = 𝑶 * (\frac{𝜕 𝐿}{𝜕 𝑶} - 𝒔_{grad})

a real example

give a real example to show how to implement softmax and its backward pass in pytorch and triton.

forwards pass is as follows:

𝑋 = (\begin{matrix} 1.0 & 2.0 & 3.0 \\ 1.0 & 3.0 & 5.0 \end{matrix})

𝑋_{max} = (\begin{matrix} 3.0 \\ 5.0 \end{matrix})

𝑋 - 𝑋_{max} = (\begin{matrix} - 2.0 & - 1.0 & 0.0 \\ - 4.0 & - 2.0 & 0.0 \end{matrix})

𝐸 = 𝑒^{𝑋 - 𝑋_{max}} = (\begin{matrix} 𝑒^{- 2.0} & 𝑒^{- 1.0} & 𝑒^{0.0} \\ 𝑒^{- 4.0} & 𝑒^{- 2.0} & 𝑒^{0.0} \end{matrix})

𝐸 = (\begin{matrix} 0.1353 & 0.3679 & 1.0000 \\ 0.0183 & 0.1353 & 1.0000 \end{matrix})

𝑆 = (\begin{matrix} 1.5032 \\ 1.1536 \end{matrix})

𝑂 = \frac{𝐸}{𝑆} = (\begin{matrix} 0.0900 & 0.2447 & 0.6652 \\ 0.0159 & 0.1173 & 0.8668 \end{matrix})

backward pass is as follows:

𝑑 𝑂 = (\begin{matrix} 0.1 & 0.2 & 0.7 \\ 0.2 & 0.3 & 0.5 \end{matrix})

𝑠_{grad} = (\begin{matrix} 0.2036 \\ 0.2597 \end{matrix})

𝑑 𝑋 = 𝑂 * (𝑑 𝑂 - 𝑠_{grad})

𝑑 𝑋 = (\begin{matrix} - 0.0381 & - 0.0792 & 0.1173 \\ - 0.0043 & - 0.0202 & 0.0245 \end{matrix})

native pytorch implementation

import torch
import torch.nn.functional as F

# Custom Forward Pass (Numerically Stable Softmax)
def softmax_forward(X):
    X_max = torch.max(X, dim=1, keepdim=True)[0]  # Shape: (N, 1)
    E = torch.exp(X - X_max)                     # Shape: (N, d)
    S = torch.sum(E, dim=1, keepdim=True)        # Shape: (N, 1)
    O = E / S                                    # Shape: (N, d)
    return O

# Custom Backward Pass (Gradient Calculation)
def softmax_backward(dL_dO, O):
    s_grad = torch.sum(O * dL_dO, dim=1, keepdim=True)  # Shape: (N, 1)
    dL_dX = O * (dL_dO - s_grad)                        # Shape: (N, d)
    return dL_dX

# Example Inputs
X = torch.tensor([[1.0, 2.0, 3.0], [1.0, 3.0, 5.0]], requires_grad=True)
dL_dO = torch.tensor([[0.1, 0.2, 0.7], [0.2, 0.3, 0.5]])

# Custom Implementation - Forward
O_custom = softmax_forward(X)

# PyTorch Implementation - Forward
O_pytorch = F.softmax(X, dim=1)

# Verify Forward Output
print("Custom Softmax Output:\n", O_custom)
print("PyTorch Softmax Output:\n", O_pytorch)
print("Forward Pass Match:", torch.allclose(O_custom, O_pytorch))

# Custom Implementation - Backward
dL_dX_custom = softmax_backward(dL_dO, O_custom)

# PyTorch Automatic Gradient Calculation
O_pytorch.backward(dL_dO)  # Computes gradient using PyTorch autograd
dL_dX_pytorch = X.grad

# Verify Backward Output
print("\nCustom Gradient w.r.t Input:\n", dL_dX_custom)
print("PyTorch Gradient w.r.t Input:\n", dL_dX_pytorch)
print("Backward Pass Match:", torch.allclose(dL_dX_custom, dL_dX_pytorch))

output:

Custom Softmax Output:
 tensor([[0.0900, 0.2447, 0.6652],
        [0.0159, 0.1173, 0.8668]], grad_fn=<DivBackward0>)
PyTorch Softmax Output:
 tensor([[0.0900, 0.2447, 0.6652],
        [0.0159, 0.1173, 0.8668]], grad_fn=<SoftmaxBackward0>)
Forward Pass Match: True

Custom Gradient w.r.t Input:
 tensor([[-0.0381, -0.0792,  0.1173],
        [-0.0043, -0.0202,  0.0245]], grad_fn=<MulBackward0>)
PyTorch Gradient w.r.t Input:
 tensor([[-0.0381, -0.0792,  0.1173],
        [-0.0043, -0.0202,  0.0245]])
Backward Pass Match: True

triton implementation

from typing import Optional

import torch
import triton
import triton.language as tl


@triton.jit
def softmax_fwd_kernel(
    X,
    O,
    D: tl.constexpr,
    B: tl.constexpr
):
    i_n = tl.program_id(0)
    o_d = tl.arange(0, B)
    m_d = o_d < D

    X_max = tl.max(tl.load(X + i_n * D + o_d, mask=m_d, other=-float('inf')), 0)
    E = tl.exp(tl.load(X + i_n * D + o_d, mask=m_d, other=-float('inf')) - X_max)
    S = tl.sum(E, 0)
    P = E / S

    tl.store(O + i_n * D + o_d, P.to(O.dtype.element_ty), mask=m_d)


@triton.jit
def softmax_bwd_kernel(
    O,
    dO,
    dX,
    D: tl.constexpr,
    B: tl.constexpr
):
    i_n = tl.program_id(0)
    o_d = tl.arange(0, B)
    m_d = o_d < D

    P = tl.load(O + i_n * D + o_d, mask=m_d, other=0.)
    dP = tl.load(dO + i_n * D + o_d, mask=m_d, other=0.)
    s_grad = tl.sum(P * dP, 0)
    dX_row = P * (dP - s_grad)

    tl.store(dX + i_n * D + o_d, dX_row.to(dX.dtype.element_ty), mask=m_d)


def softmax_fwd(
    X: torch.Tensor,
    dtype: Optional[torch.dtype] = torch.float
) -> torch.Tensor:
    shape = X.shape
    X = X.view(-1, X.shape[-1])

    N, D = X.shape
    B = triton.next_power_of_2(D)

    O = torch.empty_like(X, dtype=dtype)
    softmax_fwd_kernel[(N,)](
        X=X,
        O=O,
        D=D,
        B=B
    )
    return O.view(*shape)


def softmax_bwd(
    O: torch.Tensor,
    dO: torch.Tensor,
    dtype: Optional[torch.dtype] = torch.float
) -> torch.Tensor:
    shape = O.shape
    O = O.view(-1, O.shape[-1])
    dX = torch.empty_like(O, dtype=dtype)

    N, D = O.shape
    B = triton.next_power_of_2(D)
    softmax_bwd_kernel[(N,)](
        O=O,
        dO=dO,
        dX=dX,
        D=D,
        B=B
    )
    return dX.view(*shape)

# Test code to verify correctness
import torch.nn.functional as F

# Example inputs
X = torch.tensor([[1.0, 2.0, 3.0], [1.0, 3.0, 5.0]], requires_grad=True, device='cuda')
dP = torch.tensor([[0.1, 0.2, 0.7], [0.2, 0.3, 0.5]], device='cuda')

# Forward pass
P_triton = softmax_fwd(X)
P_torch = F.softmax(X, dim=1)

# Verify forward pass
print( "P_triton:\n", P_triton)
print( "P_torch:\n", P_torch)
print("Forward Pass Match:", torch.allclose(P_triton, P_torch))

# Backward pass

dX_triton = softmax_bwd(P_triton, dP)
P_torch.backward(dP)
dX_torch = X.grad

# Verify backward pass
print( "dX_triton:\n", dX_triton)
print( "dX_torch:\n", dX_torch)
print("Backward Pass Match:", torch.allclose(dX_triton, dX_torch))

output:

P_triton:
 tensor([[0.0900, 0.2447, 0.6652],
        [0.0159, 0.1173, 0.8668]], device='cuda:0')
P_torch:
 tensor([[0.0900, 0.2447, 0.6652],
        [0.0159, 0.1173, 0.8668]], device='cuda:0', grad_fn=<SoftmaxBackward0>)
Forward Pass Match: True
dX_triton:
 tensor([[-0.0381, -0.0792,  0.1173],
        [-0.0043, -0.0202,  0.0245]], device='cuda:0')
dX_torch:
 tensor([[-0.0381, -0.0792,  0.1173],
        [-0.0043, -0.0202,  0.0245]], device='cuda:0')
Backward Pass Match: True

Results: speed comparison

The performance comparison between PyTorch and Triton implementations reveals:

Results show

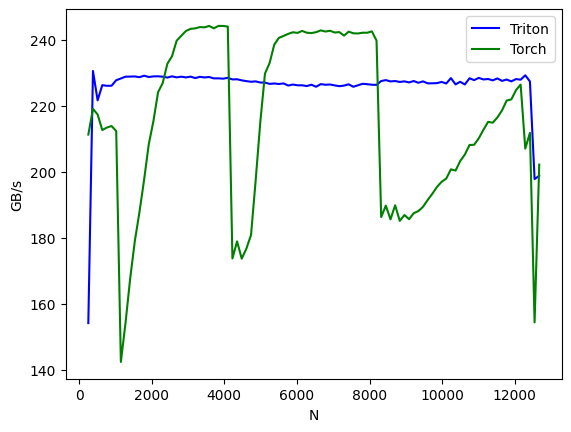

forward pass: triton implementation is stable, while the PyTorch implementation is faster for most batch sizes but shows fluctuations for a few.

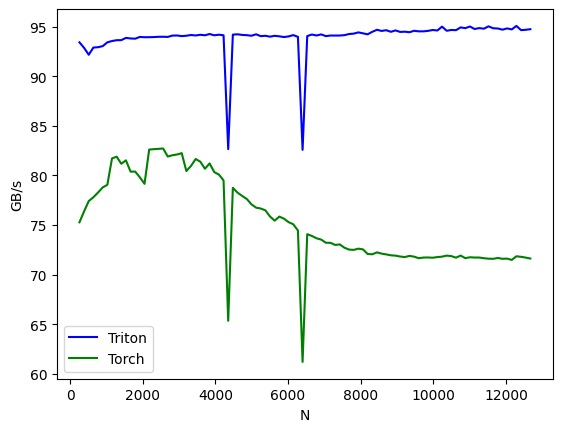

backward pass: triton implementation outperforms the pytorch implementation across most batch sizes. (the comparison may not be entirely fair, as triton caches the output $𝑂$ , whereas pytorch’s handling intermediate values is unclear.)
